Model 5300 Series Twin-Tamp Label Printer-Applicator

Weber’s Model 5300 Twin-Tamp label printer applicator combines a high-performance thermal/thermal-transfer label printer with a specially configured applicator to satisfy the printing and two-label, adjacent-panel application of carton labels in line.

  • Choose from a wide range of 203, 300 and 600 dpi print engines
  • Capable of handling print speeds up to 16 ips
  • Numerous I/O’s ease interfacing with external devices
  • Monitor operation via a web browser

Model 5300 Series Twin-Tamp Label Printer-Applicator

Designed, engineered and built exclusively by Weber, the Twin-Tamp system is available with a choice of print engines, including 203, 300 or 600 dpi units from manufacturers like Zebra, SATO and Datamax. Label sizes range from 2.0″ wide and 1.0″ long to 4.0″ wide and 6.0″ long. Each system can produce variable-sized text, bar codes and graphic images at speeds programmable up to 16 ips.

After a label is printed, it is automatically peeled from its liner and retained by vacuum on a non-contact, tamp-blow applicator pad. The tamp pad is mounted on a 90-degree rotary swing arm that reaches across a conveyor and blows the label onto the front panel of the moving carton. Upon its return, a second label is printed and a separate straight-line stroke applies that label to the side of the carton to complete the cycle. Depending on label size, the system can maintain up to 40 cycles per minute at a placement accuracy of ±0.03″.

The system also can be configured to label side and rear panels, or single panels. It easily adjusts to various conveyor heights and carton sizes when mounted on a heavy-duty stand.

Special Features & Options

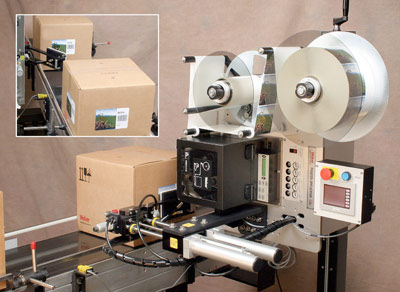

5300 twin-tamp 2-panel label printer applicator featuresThe Model 5300 Twin-Tamp system includes a number of noteworthy features that add to the operational versatility of this printer-applicator:

Browser-based monitoring: The status of all operational functions and configurations can be monitored by logging on to a web page that is unique to each Model 5300 unit.

Numerous I/O’s: The system can be interfaced with many types of external devices.

One-to-one media consumption: Special label unwind and rewind dimensions are matched to the system’s ribbon supply to ensure they are consumed at the same rate, reducing downtime and eliminating partial changeovers.

Print job storage: Multiple label printing formats can be stored in the system’s memory, making it easier for an operator to select a job directly from the applicator instead of downloading a computer file.

The Model 5300 twin-tamp system boasts numerous additional features including an upgradeable microprocessor controller, various inputs/outputs, plus durable construction that will withstand harsh industrial environments.

There also are several optional enhancements that can increase the system’s functionality. A product height sensor, for example, enables the printer-applicator to label items of varying heights delivered by the same conveyor.

Other options include a 15-foot umbilical connection that enables the remote location of the unit’s controller; an adjustable stand for optimum system orientation; label-on-pad and product-presence sensors; plus beacon light alerts to signal the status of label and ribbon supplies.

Weber also took the hassle out of routine maintenance. The system is programmed with built-in machine cycle diagnostics for self-testing of normal operating cycles, plus input diagnostics that permit testing on specific functions.



Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.

Available Documents

5300_twin_tamp

    Markoprint Integra PP 108

    The Markoprint Integra PP108 is the first inkjet printer with SEIKO printing technology and a circulating ink system. It features a POZIFLOW circulating ink system which prevents the accumulation of air in the nozzles and ensures a permanent, clean print image without missing print due to blocked nozzles. The system’s ink tank can be installed above, below, or at the same height as the print head without any problems. The new SEIKO printhead has a print height of 108 mm and achieves a remarkable speed of up to 150 meters per minute with a high resolution of 360 dpi.

    Suited to Dual Colour Printing Applications such as Hazard Labelling, Dual Colour overprinting and Direct Printing Applications to corrugate, and web printing applications, the PP108 is the latest high end, economical Inkjet System using the latest Drop on Demand Printing Technology.

    View Product

    Markoprint ZTV HP

    The Markoprint ZTV HP is a Central Ink Supply (CIS) system stores up to 400ml of ink for Markoprint HP Class inkjet printing systems such as the Markoprint integra One, Markoprint X2JET / X4JET, and Markoprint integra Quadro.

    The large ink tank prevents frequent cartridge replacements from lowering your Overall Equipment Effectiveness (OEE). It can hold up to four single HP cartridges repaying you rapidly thanks to reduced ink prices. For non-interrupted production, the system can be paired with our NonStopPrinting printhead. Using an interface directly on the cartridge, current ink filling levels are monitored in real time. When the levels in the bulk tank fall below a certain threshold, a valve to the bulk tank opens and automatically refills it.

    View Product

    Markoprint Shutter Printhead HP

    Inkjet nozzles can clog and dry up in a dusty printing environment, which is typical in wood-processing enterprises and other sectors. This results in poorly printed images. Our Markoprint Shutter Printhead HP prevents dust from entering the ink cartridge or gathering on the nozzles. During a production halt, the printhead automatically retracts the cartridge and shuts the open nozzle plate. After being paused for even several days, it is instantly ready to print again.

    View Product

    Geset 112 Bottom Labelling System

    The Geset 112 labelling system is used to label square products on the bottom side automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage on the labelling system. Care should be taken on accurate alignment of the products. It is essential that the products are forwarded separately to the applicator with a gap between each other.

    When the light barrier is reached, an application trigger is tripped. The label applicator applies then in Wipe On procedure a label onto the product. The label on bottom side is pushed on the product by the self-weight of the product. After labelling the products move on and can be removed from conveyor by the customer.

    View Product
