Mobile Print & Ship and Online Print & Ship

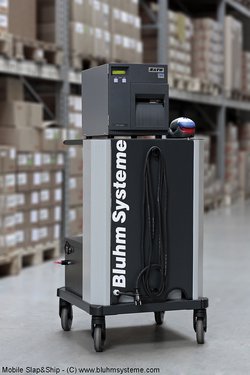

“Mobile Print & Ship” uses an RFID desktop printer placed on a mobile trolley which can be used for a variety of production and logistics scenarios. Using this system, tags can be defined and printed locally at the product itself. The operator first scans the pallet barcode, which is then transmitted to the printing unit.…
“Mobile Print & Ship” uses an RFID desktop printer placed on a mobile trolley which can be used for a variety of production and logistics scenarios. Using this system, tags can be defined and printed locally at the product itself.
The operator first scans the pallet barcode, which is then transmitted to the printing unit. The printer then uses this barcode data as input for the creation of an EPC (Electronic Product Code). Finally, the labels are applied by hand to the items.
The “Online Print & Ship” solution also involves the use of an RFID desktop printer. However, in contrast to the “Mobile Print & Ship” variant, the “Online Print & Ship” solution is a fixed installation, equipped with an online connection. The solution is necessary in situations where the packaging does not contain all of the information required for the automatic generation of an EPC – such as the EAN-18 number, for example. In such cases, the package or order number must be checked against a database (for example) in order to determine the EPC that should be generated.
Another scenario in which an online connection is advisable is when the ordinary EPC generation and labelling process needs to be documented in the company’s own database.
Both the “Mobile Print & Ship” and “Online Print & Ship” systems can process label formats from 19 x 6 mm to 228 x 2,540 mm and come with a “Flag Tag” option, which increases the read performance of RFID tags on metal surfaces or with liquids.
RFID desktop printer Zebra R110Xi4
This high-performance industrial printer enables by combination with the innovative adaptive RFID-Coding Technology a maximum flexibility with printing, respective coding of RFID SmartLabels and up to all „Inlays“. Hereby the Zebra R110Xi4 is particularly suitable for customers that have to process a high number of different SmartLabel- or even Inlay-variants with a high output.
Benefits from the Zebra R110Xi4:
- RFID-Desktop Printer optimized for high quantities of labels to be printed
- flexible by adaptive RFID-coding technology (a combination of several reader-elements), enables to write on different types of transponder, if necessary also in various positions
- cost-efficient for consumables as RFIDTransponder (so-called „Inlays“) can be coded also, thus SmartLabels are not required
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
Markoprint ZTV HP
The Markoprint ZTV HP is a Central Ink Supply (CIS) system stores up to 400ml of ink for Markoprint HP Class inkjet printing systems such as the Markoprint integra One, Markoprint X2JET / X4JET, and Markoprint integra Quadro.
The large ink tank prevents frequent cartridge replacements from lowering your Overall Equipment Effectiveness (OEE). It can hold up to four single HP cartridges repaying you rapidly thanks to reduced ink prices. For non-interrupted production, the system can be paired with our NonStopPrinting printhead. Using an interface directly on the cartridge, current ink filling levels are monitored in real time. When the levels in the bulk tank fall below a certain threshold, a valve to the bulk tank opens and automatically refills it.
View ProductZebra FS20 Fixed Industrial Scanner
An Easily Integratable Scanning Solution
The increasing demands of international commerce and its global supply chain are pressuring companies to deliver more — and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.
Address it all with the compact Zebra FS20 Fixed Industrial Scanner. With the FS20, it’s easy to track and trace every item as it moves through production, storage and fulfilment. Scan barcodes on components moving through your assembly line to ensure the right part is used at the right time — and enable rapid targeted recalls of products that contain defective parts. Scan barcodes on items as they are placed on warehouse shelves to provide visibility into real time inventory. And scan barcodes when fulfilling orders to ensure the right items are sent to the right customer. Whatever you want to track and trace, the FS20 makes it easy.
View ProductMarkoprint Integra PP 108
The Markoprint Integra PP108 is the first inkjet printer with SEIKO printing technology and a circulating ink system. It features a POZIFLOW circulating ink system which prevents the accumulation of air in the nozzles and ensures a permanent, clean print image without missing print due to blocked nozzles. The system’s ink tank can be installed above, below, or at the same height as the print head without any problems. The new SEIKO printhead has a print height of 108 mm and achieves a remarkable speed of up to 150 meters per minute with a high resolution of 360 dpi.
Suited to Dual Colour Printing Applications such as Hazard Labelling, Dual Colour overprinting and Direct Printing Applications to corrugate, and web printing applications, the PP108 is the latest high end, economical Inkjet System using the latest Drop on Demand Printing Technology.
View ProductMarkoprint NonStop Printing
To enable continuous marking in ongoing production, our Markoprint NonStopPrinting printhead holds two alternately printing cartridges. Because the other ink cartridge is printing on the same position, each ink cartridge can be changed, cleaned, or serviced without pausing the machine.
An intelligent automatism prevents both cartridges from going empty at the same time. The first cartridge will always print two consecutive print jobs, taking turns with the second cartridge, which will only print one. This sophisticated automatism avoids both cartridges from running out at the same time. This will keep the ink from drying out in both cartridges. When the cartridge with the larger print volumes is empty, a warning will show, and the other cartridge will continue printing until it is replaced. The new cartridge will print the lower quantities to allow for you to replace the “older” cartridge. A sophisticated workflow that will boost your efficiency and productivity.
View Product
