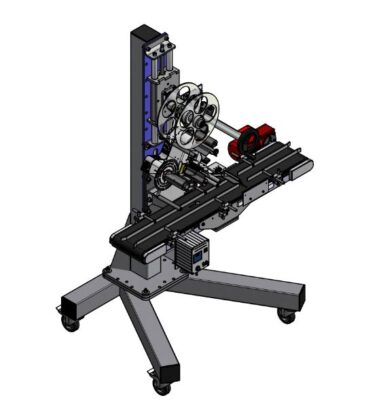

Geset 111 Top Labelling System

The Geset 111 labelling system is used to label square products on the top side automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage on the labelling system. Care should be taken on accurate alignment of the products. It is essential that the products are forwarded separately to the applicator with a gap between each other.

When the barrier is reached, an application trigger is tripped. The label applicator applies a label on the product in Wipe On procedure. The label on the top side is pushed on to the product by a brush or roller. After labelling, the products move on and can be removed from the conveyor by the customer.

Contact Us Download Brochure

      • Labelling at top side of square products.



      • Systems on rolls.



      • Robust steel base frame.



      • Simple unmistakable operation by buttons.



      • Speed of base conveyor can be adjusted by frequency converter.



      • Proven and reliable applicator technique provided by Alpha Compact, 120mmlabel width.



      • Performances of up to 100 products per minute are possible.



Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.

Available Documents

Geset 111 Instruction Manual
Geset 111 Technical Information
Geset 111 Computer Assisted Design
