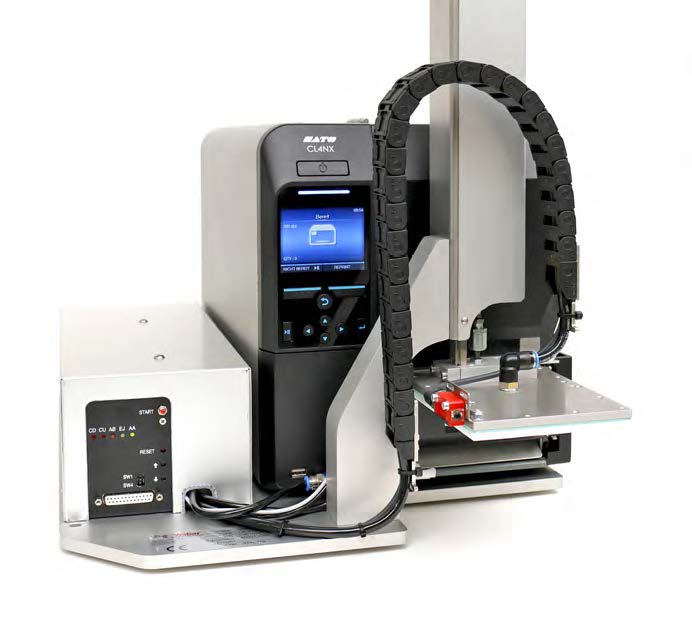

Weber LA2050 – Compact Entry Level Print & Apply
The compact and low-cost LA2050 label print and apply system is designed for automated print and apply processes on a production line. It can also be used in semi-automatic mode where automatic label application is not required with the system being used as a label print and dispense system, with the label applicator system being initiated manually by the operator.
The compact and low-cost LA2050 label print and apply system is designed for automation on the production line. The LA2050 also provides a semi-automatic mode where automatic label application is not required with the system being used as a label print and dispense system, with the label applicator system being initiated manually by the operator.
Utilising the award winning features of the Sato CLNX4, the LA2050 label applicator works with many programming languages such as ZPL, DPL, IPL, and TPL without having to change any settings. Operatives can easily diagnose printer errors with the messaging system on the printer panel.
The user can correct the error with a video shown on the printer display. The LA2050 can print labels from 40 x 30mm up to labels in DIN A6 format and bigger and apply them to their precise position. The LA2050 can apply 25 labels per minute. Also, the application can achieve a label format of 80 x 60 mm without any problems. The LA2050 can also achieve higher dispenser speeds, depending on the label material, format, and application.
This automatic label applicator can reach maximum performance. The robust applicator has a small compact footprint and a highly efficient low energy tamp blow applicator for non-contact labelling. A variable stroke provides for automatic labelling of products of varying heights.
Label Parameters
The LA2050 is a compact reliable work horse. The robust applicator with Festo pneumatics and recirculating ball bearing system provides a durable composite design and guarantees labelling accuracy. A 218mm diameter label roll allows the LA2050 to exceed the performance of similar competitive systems. The LA2050 can save up to 20% in operator intervention thanks to the reduced need for label roll changes.
The print ribbon length of 600 meters ensures that the labeller can perform continuous label printing over longer periods of time. Users can change the ribbon or labels quickly and easily. They can do this thanks to the modular design and ease of access to the printer mechanism.
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
Weber LA2050 BrochureGeset 111 Top Labelling System
The Geset 111 labelling system is used to label square products on the top side automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage on the labelling system. Care should be taken on accurate alignment of the products. It is essential that the products are forwarded separately to the applicator with a gap between each other.
When the barrier is reached, an application trigger is tripped. The label applicator applies a label on the product in Wipe On procedure. The label on the top side is pushed on to the product by a brush or roller. After labelling, the products move on and can be removed from the conveyor by the customer.
View ProductGeset 125 Horizontal Labelling System
The Geset 125 labelling system is used to label cylindrical products automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage of the labelling system. Care should be taken on accurate alignment of the products between the two freely mounted rollers of the roll conveyor. The side guide’s position the products flush with the outside edge of the roll conveyor.
The roll conveyor feeds the products to the labeller. There the label is applied with the part running forward onto the product and it is pushed by rotation and the back pressure of the wrapping unit onto the product. The back pressure of the wrapping unit (the speed of the wrapping unit is twice as fast as the speed of the base conveyor) enables the product in rotation. The roll conveyor forwards the finished labelled products to the outfeed. Here the products are removed manually or by the customer’s conveying system.
View ProductMarkoprint Integra Quadro/Quadro²
The new Markoprint Integra Quadro/Quadro² print controller can control up to four inkjet printers or four print positions at the same time. This allows you to print on both sides of primary and secondary packaging on one or two separate production lines. There are also two separate printing methods that can be used in this process.
The Markoprint Integra Quadro/Quadro² can easily cope with limited space thanks to its slender design. Installation inside or directly at the industrial line is straightforward thanks to the different fixation options. It was designed specifically for installation in control panels and machinery.
View ProductZebra FS20 Fixed Industrial Scanner
An Easily Integratable Scanning Solution
The increasing demands of international commerce and its global supply chain are pressuring companies to deliver more — and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.
Address it all with the compact Zebra FS20 Fixed Industrial Scanner. With the FS20, it’s easy to track and trace every item as it moves through production, storage and fulfilment. Scan barcodes on components moving through your assembly line to ensure the right part is used at the right time — and enable rapid targeted recalls of products that contain defective parts. Scan barcodes on items as they are placed on warehouse shelves to provide visibility into real time inventory. And scan barcodes when fulfilling orders to ensure the right items are sent to the right customer. Whatever you want to track and trace, the FS20 makes it easy.
View Product
