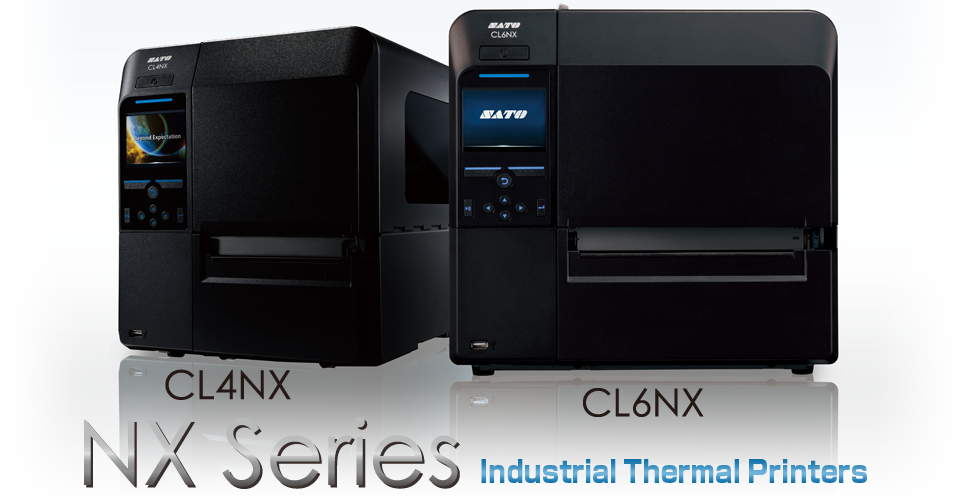

SATO | NX Series
The NX Series is a game-changing innovation that is made easy. It is designed to be so easy to use and maintain that anyone can feel the difference from the day they start using it. The new NX Series comes loaded as standard with many different features to make operation and maintenance easy.
NX Series | Features
SATO‘s first truly Universal industrial label printer engineered for the most demanding printing needs. The new NX Series comes loaded as standard with many features to make operation and maintenance easy for you.
- User-Friendly operation
- Multi-National Language Support
- Multi emulation Support
- Standard multiple On-board Interfaces
- Support for a variety of media types
- Easy Set-up and Maintenance
- High Speed Processing and Throughput
- Space Saving Design
- Superior Print Accuracy and Quality
- Durable Design
User-Friendly Operation
 Blue LED Indicator – Blue confirms normal operation and Red indicates an operation alert. Clearly visible from a distance.
|
Durable Design
Tough metal housing – Protecting against damage in the field, the NX Series is ready for the toughest of environments.
Aluminium Die-Cast chassis – Key parts such as the chassis, front cover, ribbon spindles and print unit are of aluminium die-cast construction to withstand the most challenging environments.
Ribbon Rewinder – Oversized core provides stable rotating torque and reduce a chance of wrinkles while in use of up to 600M long roll.
Wear parts life time – The printhead and platen roller have been designed for double life time operation prolonging intervals between maintenance and reducing operating costs.
Tool-less Replacement Parts – Provides quick replacement of both the print head and platen roller with no tools required, which helps provide easy maintenance and reduce unwanted downtime.
Features |
||
| – User-friendly operation – Multinational language support – Multi emulation support – Standard multiple on-board interfaces – Support for a variety of media types |
 |
– Easy setup and maintenance – Space saving design – High-Speed Processing & throughput – Superior print accuracy and quality – Durable Design |
CL4NX |
CL6NX |
|
| Print method: | Direct Thermal / Thermal Transfer | |
| Print resolution: | 203, 305 or 609 dpi | 203 or 305 dpi |
| Print width: | 104 mm – 4.1″ | 167.5 mm – 6.5″ |
| Print speed: | 250 mm/s – 10 inch per second 200 mm/s – 8 inch per second 152 mm/s – 6 inch per second |
250 mm/s – 10 inch per second 200 mm/s – 8 inch per second |
| Emulations: | Auto detect: ZPL – IPL – TPL – DPL |
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
