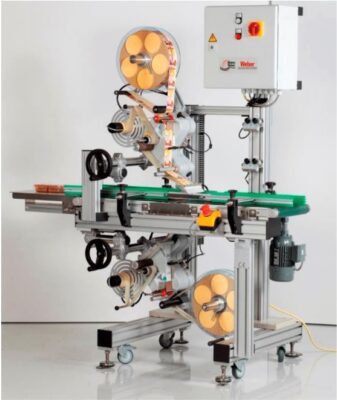

Geset 117 Top and Bottom Labelling System

The Geset 117 labelling system is used to label square products on the top and bottom side automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage on the labelling system. Care should be taken on accurate alignment of the products. It is essential that the products are forwarded separately to the applicator with a gap between each other.

When the light barrier is reached, an application trigger is tripped. Both label applicators apply then in Wipe On procedure a label onto the product. The label on top side is pushed on the product by a brush or roller. The label on bottom side is pushed on the product by the self-weight of the product. After labelling the products move on and can be removed from conveyor by the customer.

Contact Us Download Brochure

      • Labelling at top-and bottom side of square products
      • System on rolls and rubber feet
      • Robust aluminium frame
      • Simple unmistakable operation by buttons
      • Speed of base conveyor can be adjusted by frequency converter
      • Proven and reliable applicator technique provided by Alpha Compact, 150mm label width
      • Performances of up to 100 products per minute are possible
