Alpha Compact Inkjet

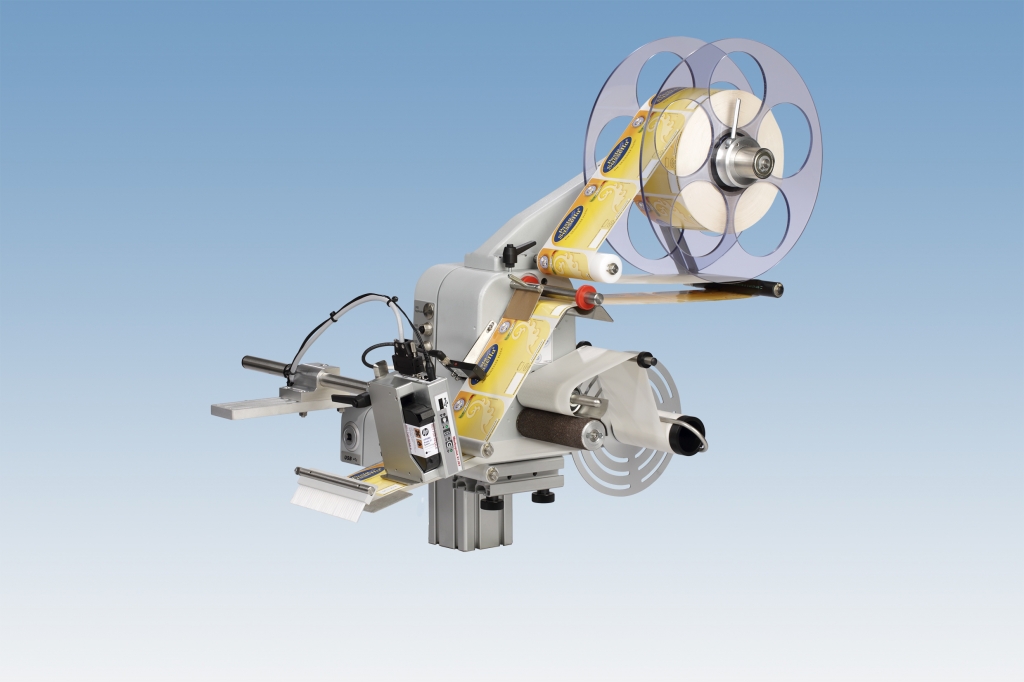

The Markoprint Weber Alpha Compact Inkjet system effectively applies labels with the addition of our X1-Jet TIJ coder for date and batch coding. A wide variety of fast drying inks and colors are available for a wide range of applications on diverse label surfaces.
Using cartridge ink technology, data of up to 12.5 mm high symbols and a resolution of up to 600 dpi can be printed neatly and quickly. Data transmission to the print head is 1:1 and real time printing without batch processing is also possible.
The Markoprint Weber Alpha Compact Inkjet system effectively applies labels with the addition of our X1-Jet TIJ coder for date and batch coding. A wide variety of fast drying inks and colors are available for a wide range of applications on diverse label surfaces.
- Printing of information such as text, shelf life, barcodes, 2D codes, graphics and logos
- Changing of print data via automatic functions or quick change of data by hand, directly at the applicator or via overriding
- Up to 3 000 serializations per minute and 600 dpi resolution, using cartridge printing technology
- Integrated and automatic date functions with expiry calculator and serial numbers
- Variable symbol heights from <1 to 12,5 mm
- Brilliant marking quality and maintenance-free functionality
- Immediate printing and high reliability, based on proven cartridge printing units
- A new printing unit with every ink cartridge replacement
- Printing in throughput mode in direction of travel, at various speeds
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
Alpha Compact X1JET leafletInk guide 2015
Markoprint Shutter Printhead HP
Inkjet nozzles can clog and dry up in a dusty printing environment, which is typical in wood-processing enterprises and other sectors. This results in poorly printed images. Our Markoprint Shutter Printhead HP prevents dust from entering the ink cartridge or gathering on the nozzles. During a production halt, the printhead automatically retracts the cartridge and shuts the open nozzle plate. After being paused for even several days, it is instantly ready to print again.
View ProductGeset 125 Horizontal Labelling System
The Geset 125 labelling system is used to label cylindrical products automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage of the labelling system. Care should be taken on accurate alignment of the products between the two freely mounted rollers of the roll conveyor. The side guide’s position the products flush with the outside edge of the roll conveyor.
The roll conveyor feeds the products to the labeller. There the label is applied with the part running forward onto the product and it is pushed by rotation and the back pressure of the wrapping unit onto the product. The back pressure of the wrapping unit (the speed of the wrapping unit is twice as fast as the speed of the base conveyor) enables the product in rotation. The roll conveyor forwards the finished labelled products to the outfeed. Here the products are removed manually or by the customer’s conveying system.
View ProductGeset 112 Bottom Labelling System
The Geset 112 labelling system is used to label square products on the bottom side automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage on the labelling system. Care should be taken on accurate alignment of the products. It is essential that the products are forwarded separately to the applicator with a gap between each other.
When the light barrier is reached, an application trigger is tripped. The label applicator applies then in Wipe On procedure a label onto the product. The label on bottom side is pushed on the product by the self-weight of the product. After labelling the products move on and can be removed from conveyor by the customer.
View ProductGeset 117 Top and Bottom Labelling System
The Geset 117 labelling system is used to label square products on the top and bottom side automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage on the labelling system. Care should be taken on accurate alignment of the products. It is essential that the products are forwarded separately to the applicator with a gap between each other.
When the light barrier is reached, an application trigger is tripped. Both label applicators apply then in Wipe On procedure a label onto the product. The label on top side is pushed on the product by a brush or roller. The label on bottom side is pushed on the product by the self-weight of the product. After labelling the products move on and can be removed from conveyor by the customer.
